Flow Meter



Model

M-50-1

M-50H-1

Size

50mm / 2"

Flow range (L/Min)

38-380

55-550

Volume / Rev.

0.681L

Max. Pressure

10Bar / 150PSI

Accuracy

± 0.2%

Repeatability

≤ 0.05%

Standard Measurement

Liter / US Gallon / IMP Gallon

Viscosity

30 SSU ~ 1,500,000 SSU

Weight (kg)

38

M’ment (LxWxH)  (mm)

530 x 480 x 530





































Model

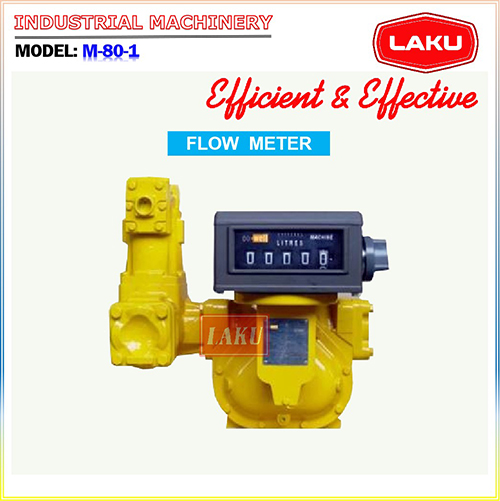

M-80-1

M-80H-1

Size

80mm / 3"

Flow range (L/Min)

75-750

115-1150

Volume / Rev.

1.839L

Max. Pressure

10Bar / 150PSI

Accuracy

± 0.2%

Repeatability

≤ 0.05%

Standard Measurement

Liter / US Gallon / IMP Gallon

Viscosity

30 SSU ~ 1,500,000 SSU

Weight (kg)

55

M’ment (LxWxH)  (mm)

580 x 500 x 610





































Model

M-100-1

M-100H-1

Size

100mm / 4"

Flow range (L/Min)

130-1300

170-1700

Volume / Rev.

5.102L

Max. Pressure

10Bar / 150PSI

Accuracy

± 0.2%

Repeatability

≤ 0.05%

Standard Measurement

Liter / US Gallon / IMP Gallon

Viscosity

30 SSU ~ 1,500,000 SSU

Weight (kg)

90

M’ment (LxWxH)  (mm)

760 x 640 x 720
