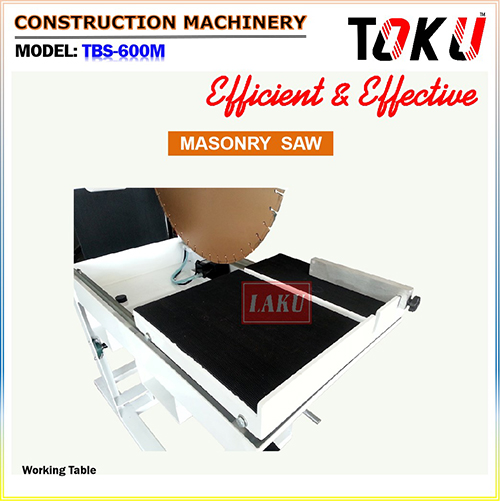

Masonry Saw

[ TBS-600M  ELECTRIC MOTOR ]

Features:

• Heavy Duty Frame with 4 Wheels.

• 2 Wheels with Locking Device.

• Graduated Scale.

• Easy Access to Blade.

• Cutting Head with Balancing Spring.

Benefits:

• Easy movement on site.

• Secure machine during Cutting Operations.

• Repeatability of Cutting Depth.

• Save time for tool change.

• Accurate Positioning.



Model

TBS-600M

Blade Diameter

600mm

Max. Cutting Dept  (mm)

230

Max. Cutting Length (mm)

500

Table Size (L x W) (mm)

525 x 400

Blade Shaft Diameter  (mm)

25.4

Blade Shaft Speed

2300 rpm

Power

7.5 HP

Voltage

415v / 50 Hz

Weight (kg)

275

Dimension (L x W x H) (mm)

1450 x 760 x 1950
