ChangChai Bare Engine Manual Start
|
Model |
CC 170 |
CC 178 |
|
Type |
Vertical, Air-Cooled, Single Cylinder, 4-Stroke |
Vertical, Air-Cooled, Single Cylinder, 4-Stroke |
|
Combustion System |
Direct Injection |
Direct Injection |
|
Bore x Stroke (mm x mm) |
70 x 59 |
78 x 64 |
|
Compression Ratio |
20 |
20 |
|
Rated Output/rpm (HP/rpm) |
4.7 / 3600 |
5.4 / 3600 |
|
Starting System |
Recoil Starter |
Recoil Starter |
|
Fuel Tank Capacity (l) |
2.5 |
3.5 |
|
Fuel Consumption (g(ml)/kwh) |
3600rpm : < 330 |
3600rpm : < 310 |
|
Weight (kg) |
33 |
33 |
|
Dimension (LxWxH) (mm) |
335 x 380 x 415 |
385 x 420 x 450 |
|
Model |

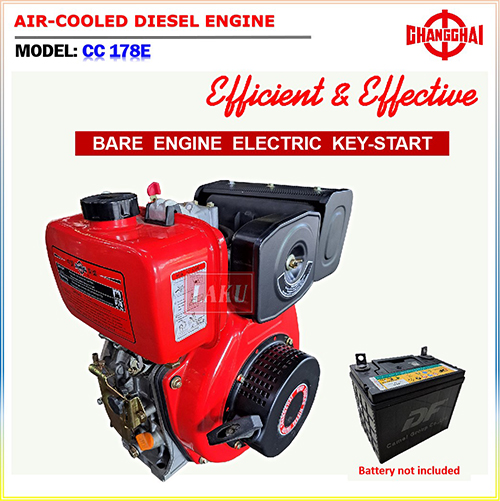

CC 178E |
CC 186E |
|
Type |
Vertical, Air-Cooled, Single Cylinder, 4-Stroke |
|
|
Combustion System |
Direct Injection |
Direct Injection |
|
Bore x Stroke (mm x mm) |
78 x 64 |
86 x 72 |
|
Compression Ratio |
20 |
19 |
|
Rated Output/rpm (HP/rpm) |
5.4 / 3600 |
6.0 / 3600 |
|
Starting System |
Electric Key-Start |
Electric Key-Start |
|
Fuel Tank Capacity (l) |
3.5 |
5.5 |
|
Fuel Consumption (g(ml)/kwh) |
3600rpm : < 310 |
3600rpm : < 310 |
|
Weight (kg) |
33 |
47 |
|
Overall Dimension (LxWxH) (mm) |
420 x 385 x 450 |
440 x 420 x 495 |
