ChangChai Diesel Generator (OPEN FRAME)
[CCFD-X Series]
Changchai is one of the earliest internal-combustion engine manufacturers in China. It is the first listed company in the national agricultural machinery industry. Changchai constantly improves their manufacturing process to provide end-users with the best quality diesel generator (Open Frame).
|
Model |

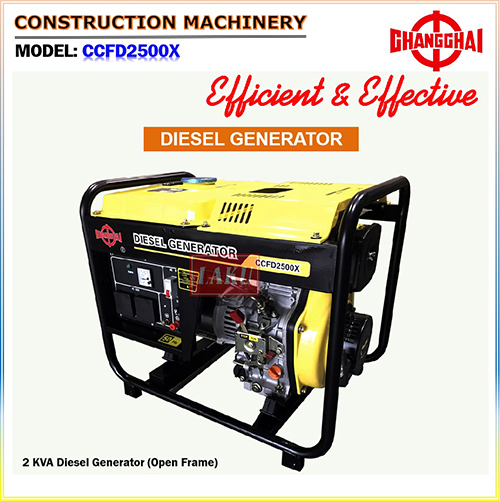

CCFD2500X |

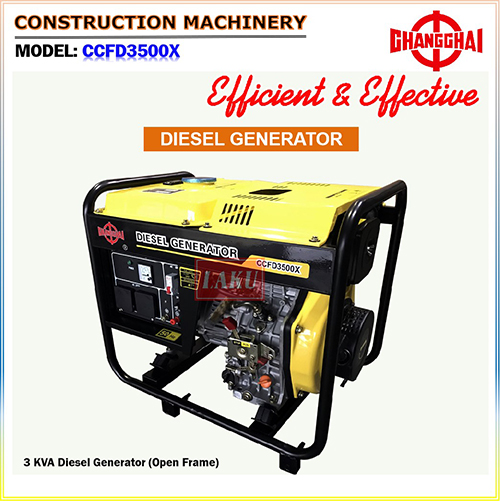

CCFD3500X |
|
Generator Type |
Brush, self-excitation, 2 poles, Single-phase |
|
|
Voltage Regulate |
Automatic Voltage Regulator (AVR) |
|
|
Frequency (Hz) |
50 |
50 |
|
Mac. AC Output (KVA) |
2.0 |
3.3 |
|
Rated AC Output (KVA) |
1.8 |
3.0 |
|
Rated AC Voltage (V) |
220 |
220 |
|
Power Factor |
100% = 1.0 |
100% = 1.0 |
|
Engine Model |
CC170FB |
178FA |
|
Engine Type |
Forced Air-cooled, 4-Stroke, Direct-Injection |
|
|
Displacement (cc) |
227 |
305 |
|
Max. Output (HP) |
4 |
5 |
|
Fuel |
Diesel Light Fuel (BS-AI or Equivalent) |
|
|
Fuel Tank Capacity |
13.5 |
13.5 |
|
Continuous Operating Hours (H) |
22 |
13 |
|
Oil Capacity (L) |
0.75 |
1.1 |
|
Ignition System |
Direct-Injection |
|
|
Starting System |
Recoil |
Recoil |
|
Operating Noise Level (7m) dB(A) |
85 |
85 |
|
Weight (kg) |
61 |
69 |
|
Dimension (L x W x H) (mm) |
640 x 460 x 560 |
640 x 460 x 580 |
|
Model |

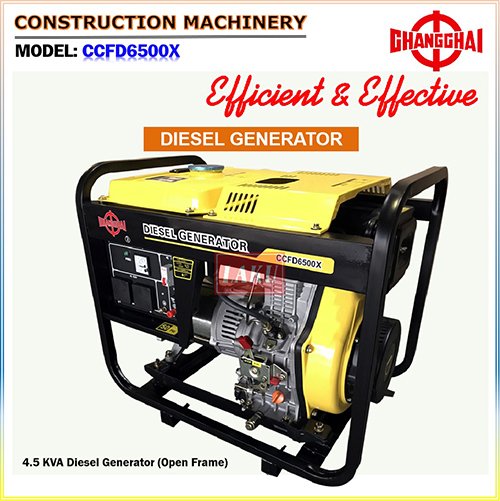

CCFD6500X |
|
Generator Type |
Brush, self-excitation, 2 poles, Single-phase |
|
Voltage Regulate |
Automatic Voltage Regulator (AVR) |
|
Frequency (Hz) |
50 |
|
Mac. AC Output (KVA) |
5.0 |
|
Rated AC Output (KVA) |
4.5 |
|
Rated AC Voltage (V) |
220 |
|
Power Factor |
100% = 1.0 |
|
Engine Model |
186FA |
|
Engine Type |
Forced Air-cooled, 4-Stroke, Direct-Injection |
|
Displacement (cc) |
418 |
|
Max. Output (HP) |
7.7 |
|
Fuel |
Diesel Light Fuel (BS-AI or Equivalent) |
|
Fuel Tank Capacity |
13.5 |
|
Continuous Operating Hours (H) |
9 |
|
Oil Capacity (L) |
1.65 |
|
Ignition System |
Direct-Injection |
|
Starting System |
Recoil |
|
Operating Noise Level (7m) dB(A) |
85 |
|
Weight (kg) |
107 |
|
Dimension (L x W x H) (mm) |
720 x 480 x 640 |
