Vibratory Plate Compactor
[ TKL-80 ]
APPLICATIONS :
* Embankment
* Backfilling Work
* Roadbed Compaction
* Asphalt Surfacing Work
|
Model |
TKL-80 |
|
Base Plate Dimension L×W (mm) |
506 × 432 |
|
Exciter Speed (rpm) |
5200 |
|
Travel Speed (m/min) |
Up to 20 |
|
Grade Ability (Deg) |
Up to 15 |
|
Centrifugal Force (kN) |
12 |
|
Min. Compaction Depth (cm) |
20 |
|
Engine |

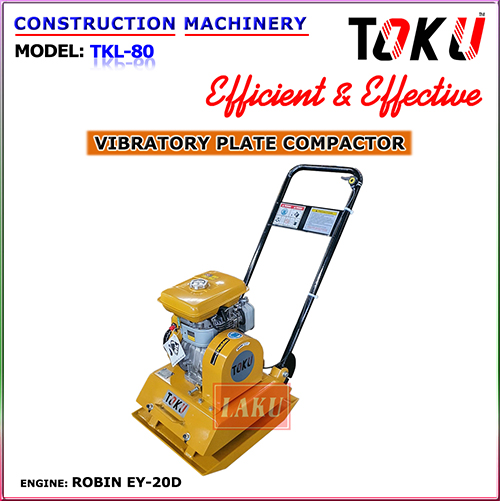

Robin EY-20D or equivalent |
|
Engine Type |
Air-cooled Gasoline |
|
Max. Output (hp/rpm) |
5/3600 |
|
Starting System |
Recoil |
|
Machine Weight (kg) |
78 |
|
Model |
TKL-80 |
|
Base Plate Dimension L×W (mm) |
506 × 432 |
|
Exciter Speed (rpm) |
5200 |
|
Travel Speed (m/min) |
Up to 20 |
|
Grade Ability (Deg) |
Up to 15 |
|
Centrifugal Force (kN) |
12 |
|
Min. Compaction Depth (cm) |
20 |
|
Engine |

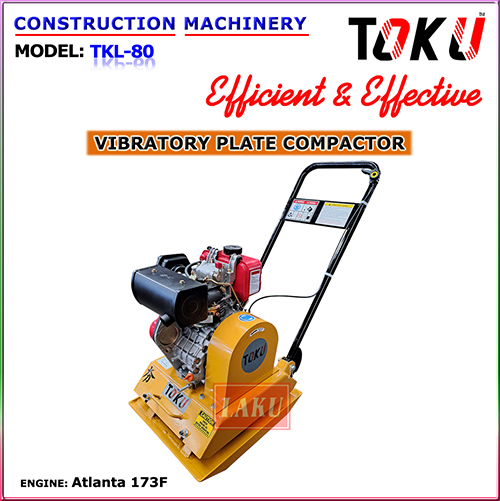

Atlanta 173F or equivalent |
|
Engine Type |
Air-cooled Diesel |
|
Max. Output (hp/rpm) |
6.2/3600 |
|
Starting System |
Recoil Starter |
|
Machine Weight (kg) |
81 |
