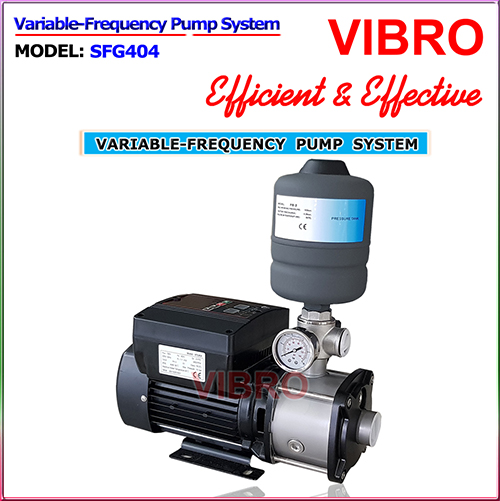

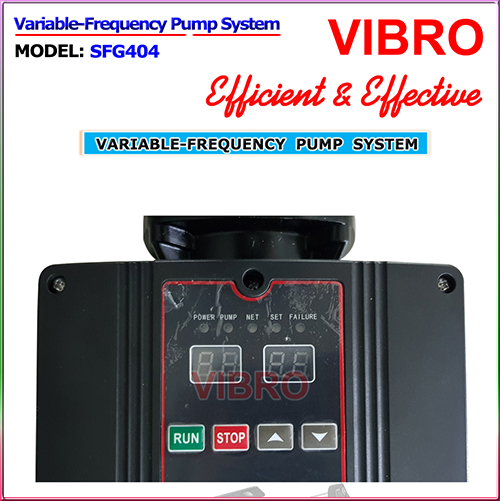

Variable-Frequency Pump System
[ SFG404 ]
|
Model |
SFG404 |
|
Power (w) |
1100 |
|
Voltage (V) |
220V, 50Hz |
|
Max. Speed (rpm) |
3450 |
|
Max. Flow (m³/h) |
7.8 |
|
Inlet Size |
1.5 inch |
|
Inlet Size |
1.0 inch |
|
Max. Pressure Rate |
4.8 Bar @ 40L/min |
|
Min. Pressure Rate |
2.4 Bar @ 110L/min |
|
Max Head (m) |
54 |
|
Rate Head (m) |
42 |
|
Dimension (cm) WxDxH |
37 x 40 x 45 |
|
Weight (kg) |
13 |
